[안테나공학] 한 학기 수업내용 총 정리

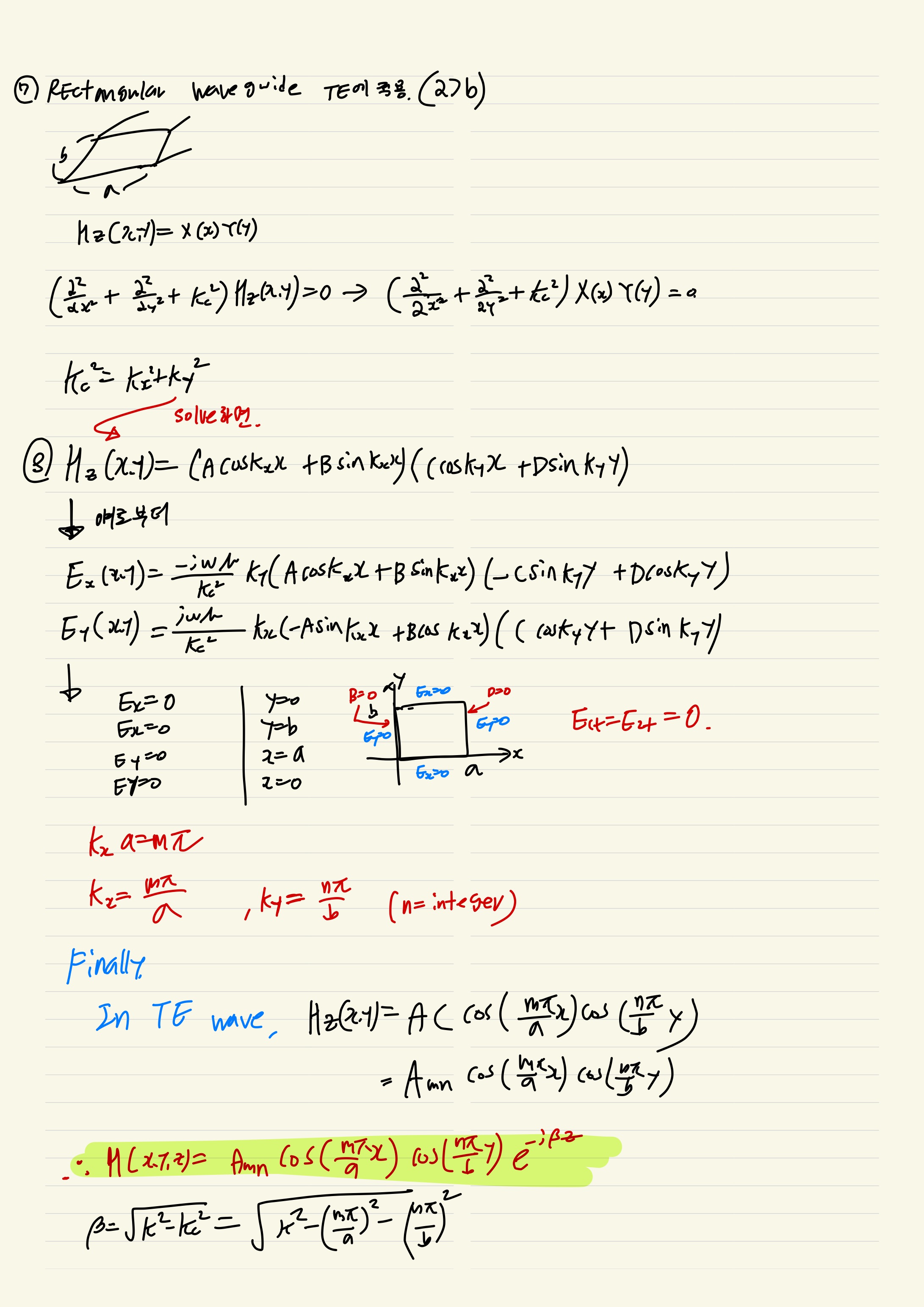

Chapter2. Waveguide Theory - 도파관 이론

1. wave number : $k = w\sqrt{\mu \epsilon} = \frac{w}{c} = \frac{2\pi}{\lambda}$
2. propagation constant : $\gamma = jk = \alpha + j\beta$
3. phase velocity : $v_{p} = \frac{w}{k} = \lambda f$

---

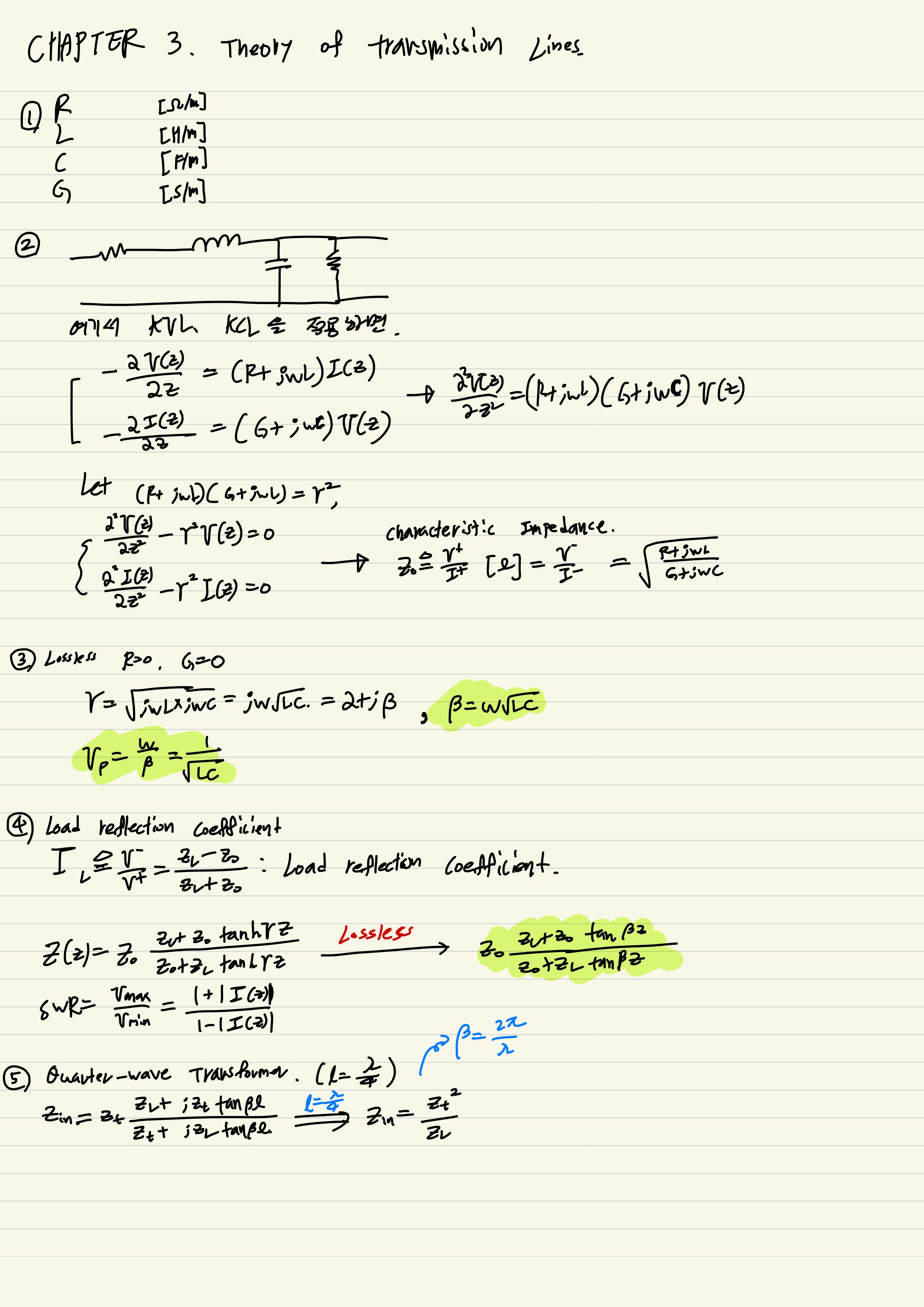

Chapter3. Theory of transmission lines

1. Reflection Coefficient : $\Gamma = \frac{z_{L} - z_{O}}{z_{L}+z_{O}}$
2. $z(z) = z_{0} \frac{z_{L}-z_{O}tanh(\gamma z)}{z_{O}-z_{L}tanh(\gamma z)}$

---

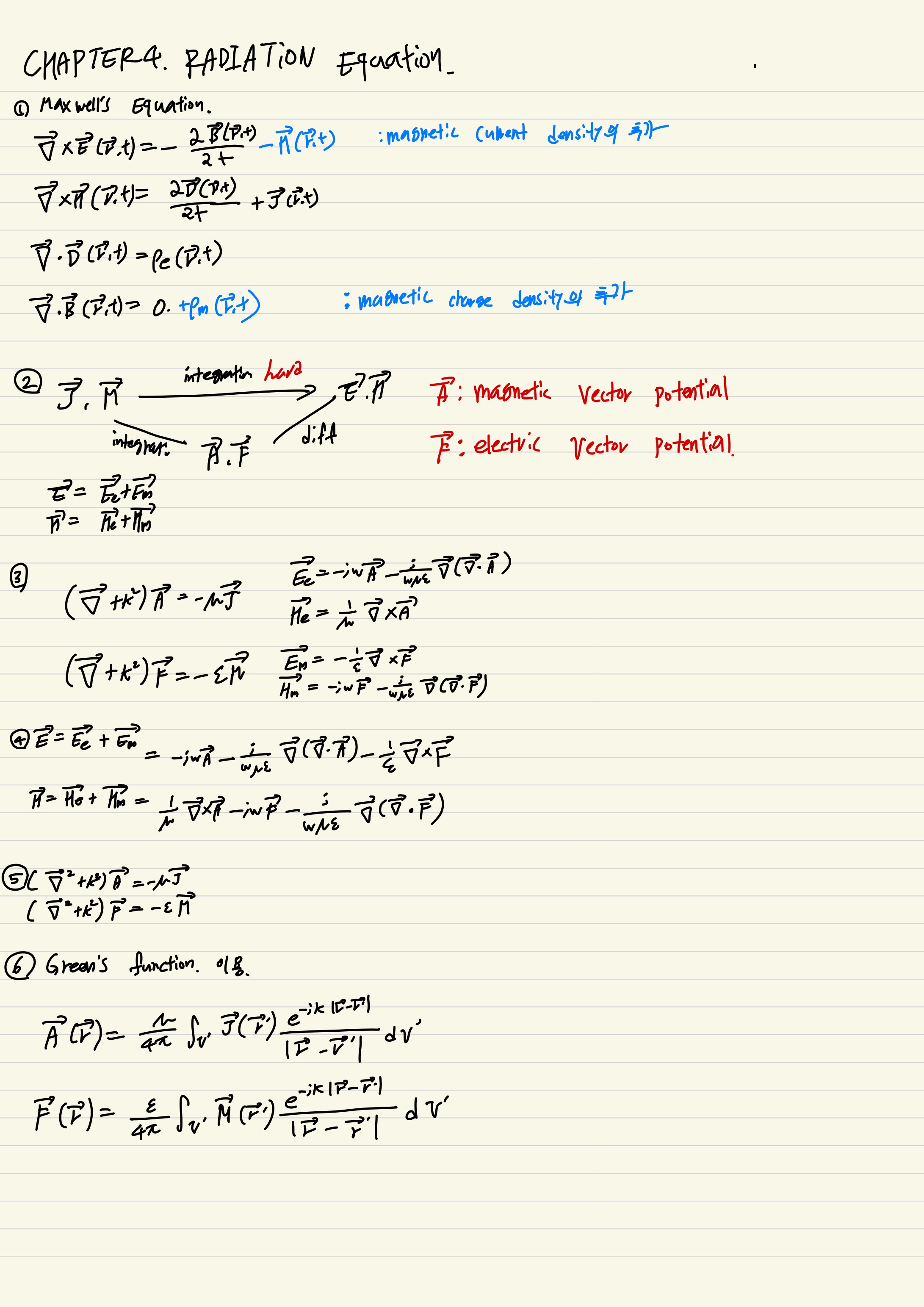

Chapter 4. Radiation Equation

---

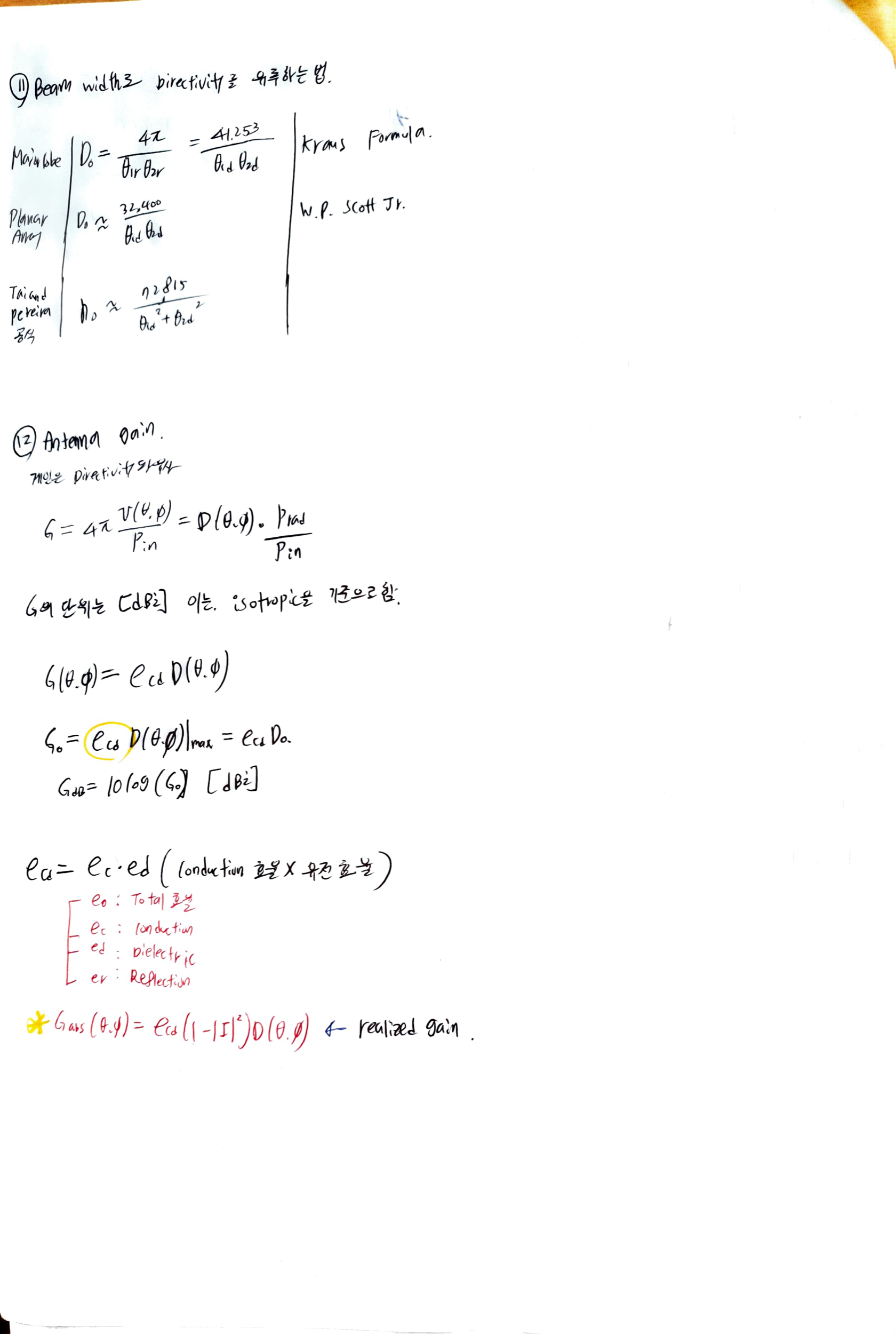

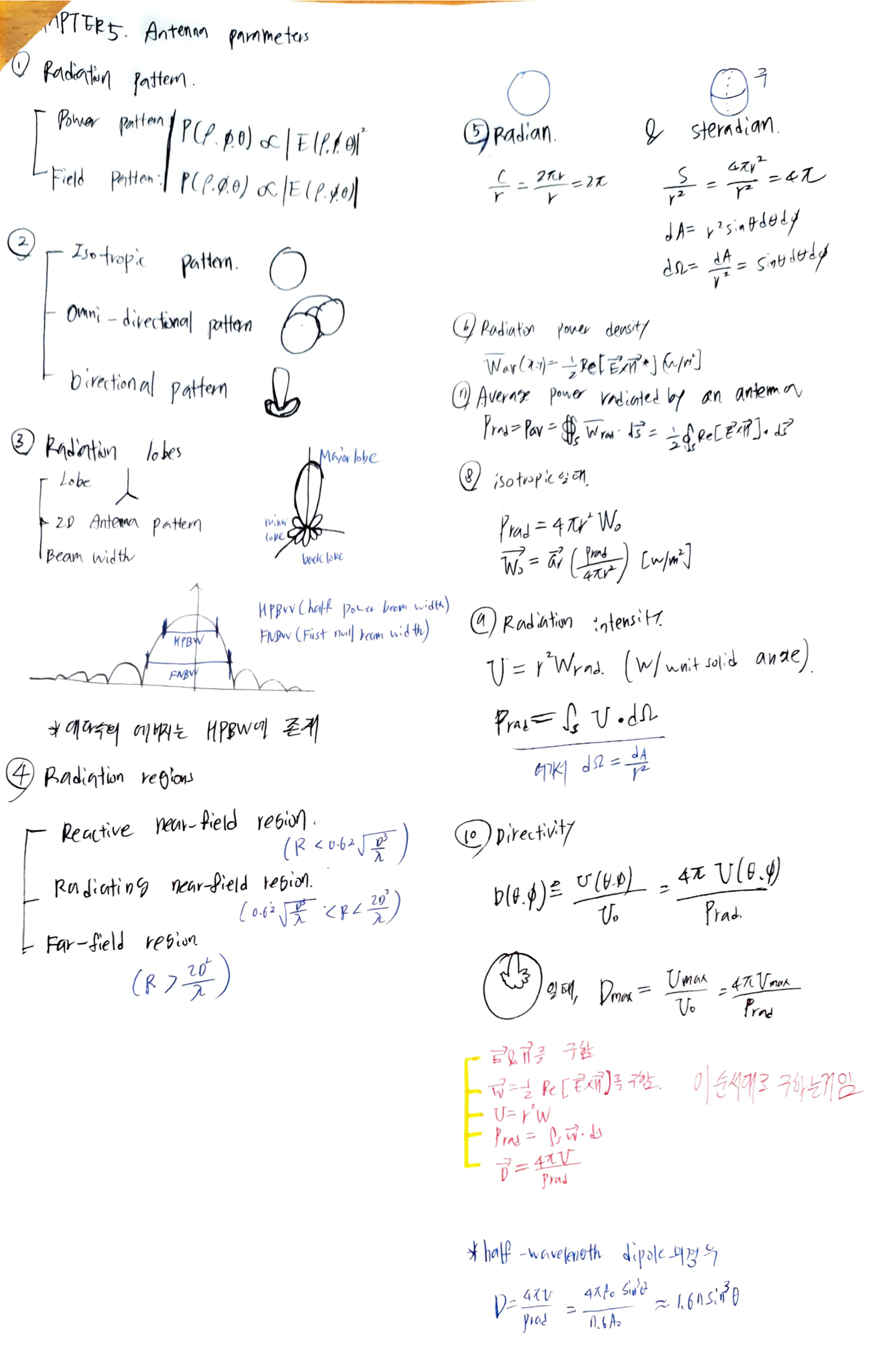

chapter5. Antenna parameters
